AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8
AABCOOLING Fan 8

AABCOOLING Fan 8

  • AABCOOLING Fan 8 is an economical fan from AAB. The fan runs at a constant 2600 ± 10% rpm. The noise level generated by the blades and the bearing is 25 dB(A). Product warranty is 3 months.
£1.97
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
of
30 days for easy returns
Safe shopping
aab_cooling_fan_8_dscf7398

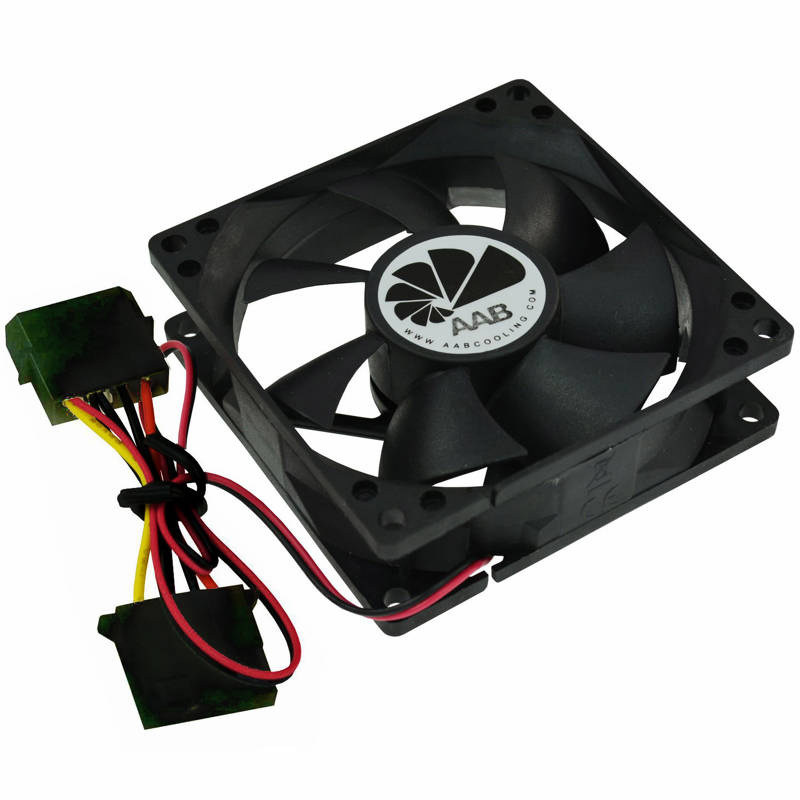

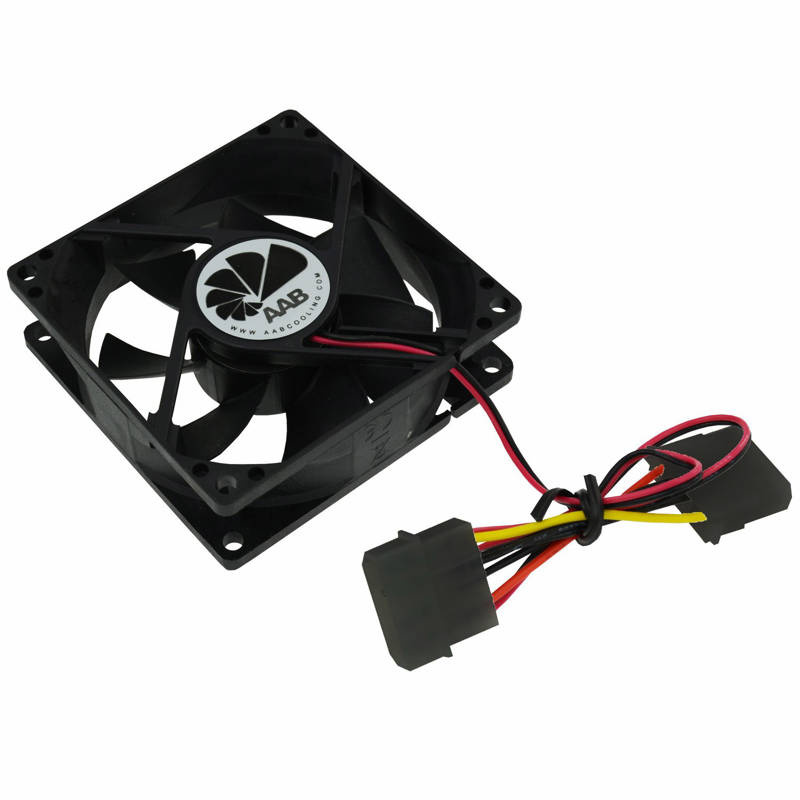

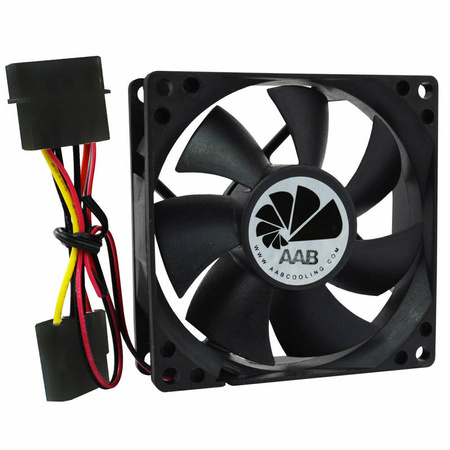

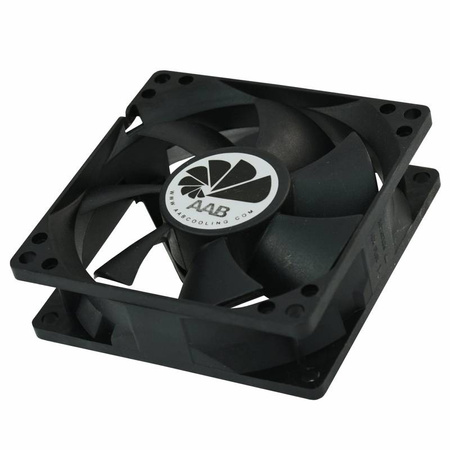

AABCOOLING Fan 8 is an economical fan from AAB. The fan runs at a constant 2600 ± 10% rpm. The noise level generated by the blades and the bearing is 25 dB(A). Due to the installation of the cheapest and short-life plain bearings in this fan, this product warranty is only 3 months.

- Economy series

- Efficient

- 3 Pin Plug

- Sleeve Bearings

- Warranty 3 months




Typical applications:

Mounting the fan in the cover or power supply: The AABCOOLING Fan 8 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.

Installation methods in the power supply:

- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).

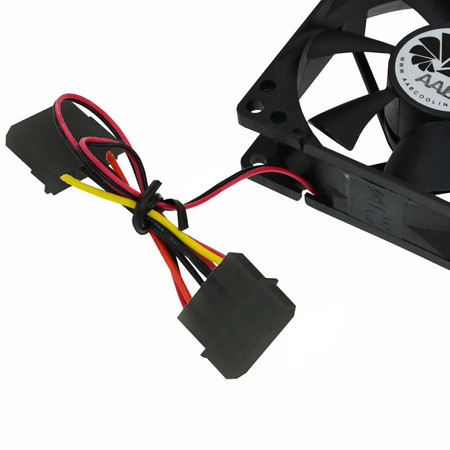

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed

Included:
- 1 x AABCOOLING Fan 8

Symbol
5907734796245
Producer code
5907734796245
Total dimensions
80 x 80 x 25 mm
Weight
66 g
Material
Plastic
Power Supply
3,5~12 VDC/ 0,05A~0,17A
Power Connector
4 Pin MOLEX
Speed
2600 rpm ±10%
Airflow
40 CFM
Noise
25 dB(A)
Bearings
Slides
Thermal resistance
0,29 C/W
Mounting hole spacing
70 x 70 mm
Cable length:
30cm
