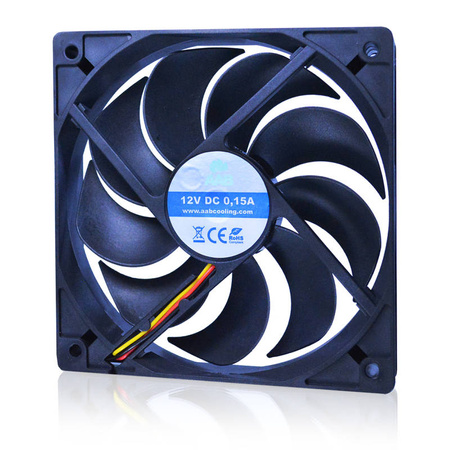

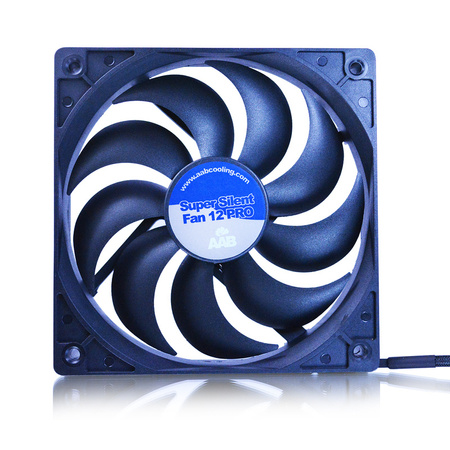

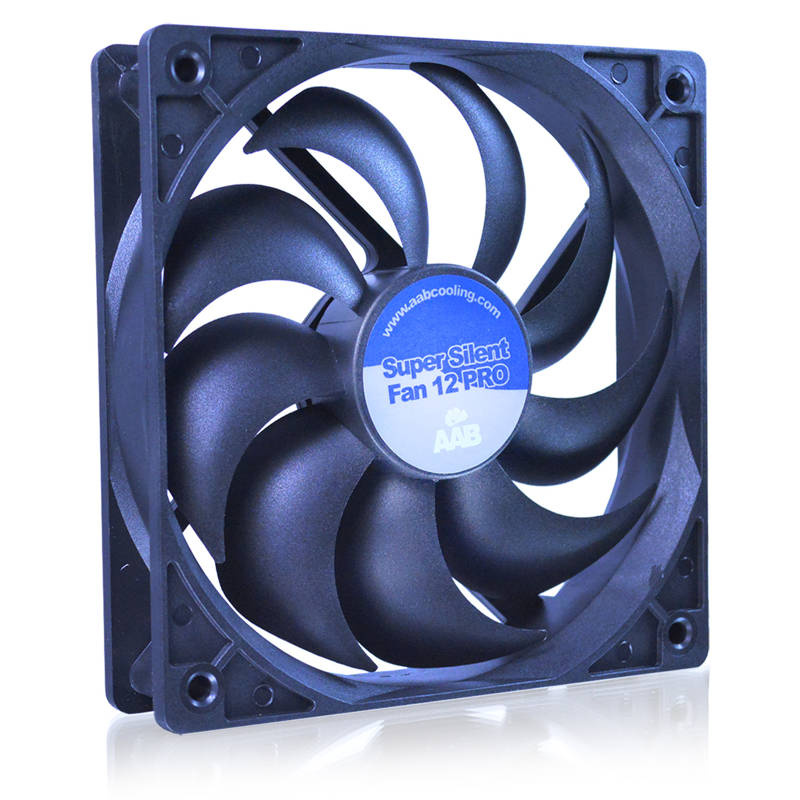

AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
AABCOOLING Super Silent Fan 12 Pro
Our bestseller

AABCOOLING Super Silent Fan 12 Pro

  • The AABCOOLING Super Silent Fan 12 Pro is a high performance 12 cm fan with up to 9 fan blades designed for dynamic workflow and a decent performance (up to 39%).
Size
£3.80
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
of
30 days for easy returns
Safe shopping
aab_cooling_super_silent_fan_12_pro_dsc_4966g

AABCOOLING Super Silent Fan 12 PRO is a high performance 12 cm fan with up to 9 fan blades designed for dynamic workflow and a decent performance (up to 39%). The high working performance of the AAB fans is due to the advanced AFDB (Dynamic Fluid Dynamic Bearing) bearings. An additional advantage of this solution is extended, compared to sliding bearings, lifespan of 100000h.
The fan operates at a constant speed of 1200 ± 10%. The airflow is 90 m³ / h, and the noise generated by the propeller is 13,9 dB, which makes it a quiet and very efficient fan in its class available on the market. The mounting is very simple - we install the fan in the right place with 4 screws.

- Solid construction, 120 x 120 x 25 mm

- State-of-the-art IC

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Excellent work performance 90 m3/h

- Mounting and anti-vibration washers

- Extended lifespan: 100000h




Excellent cooling:

Highly efficient and 120 x 120 x 25 mm dimensions allow the fan to be mounted on the heatsink for efficient cooling of the processor instead of the loud noise of other manufacturers.
Excellent replacement for loud fan on a CPU heat sink. Can be installed on the side panel of a PC.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades.
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- Ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span.

Mounting the fan in a casing or power supply:

The AABCOOLING Super Silent Fan 12 PRO is mounted on 4 screws, attached just like the standard fans in the power supply, allows quick and easy replacement of the loud fan. Mounting methods in the power supply:

- connecting the fan on the motherboard and carrying the cable (30 cm) from the power supply by any small gap - possibility of reading the current number of fan speed in the BIOS

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.

Included:

- 1 x AABCOOLING Super Silent Fan 12 PRO
- 4 x mounting screws
- 4 x anti-vibration washers
- Packaging

Symbol
5901812990358
Producer code
5901812990358
Total dimensions
120 x 120 x 25
Weight
105 g
Material
Plastic
Power Supply
5V-12 VDC/ 0,06A-0,15A/ 0,3W-1,8W
Power Connector
3 Pin
Speed
1200 rpm ±10%
Airflow
90 m3/h
Noise
13,9 dB
Bearings
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance
0,29 C/W
Mounting hole spacing
105 x 105 mm
Lifespan
100000 h
Size
120 mm
24 months warranty
