  • The AABCOOLING Super Silent Fan 25 is a high performance 218 x 218 mm fan with up to 13 fan blades designed in a dynamic way for high performance. The fan operates at a constant speed of 800 ± 10%.
£15.23
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
of
30 days for easy returns
Safe shopping
DSC_4571o

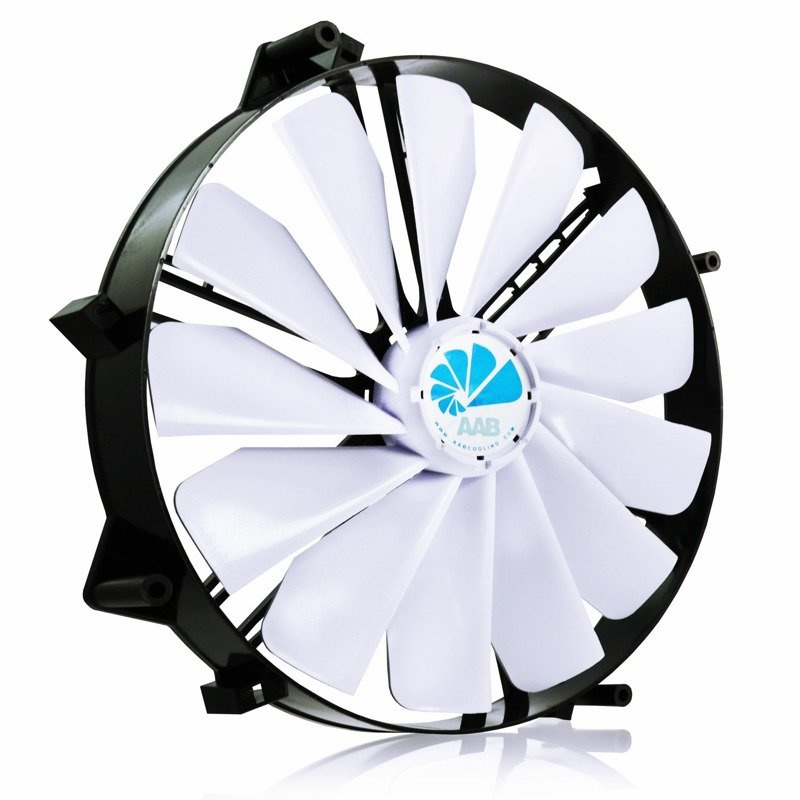

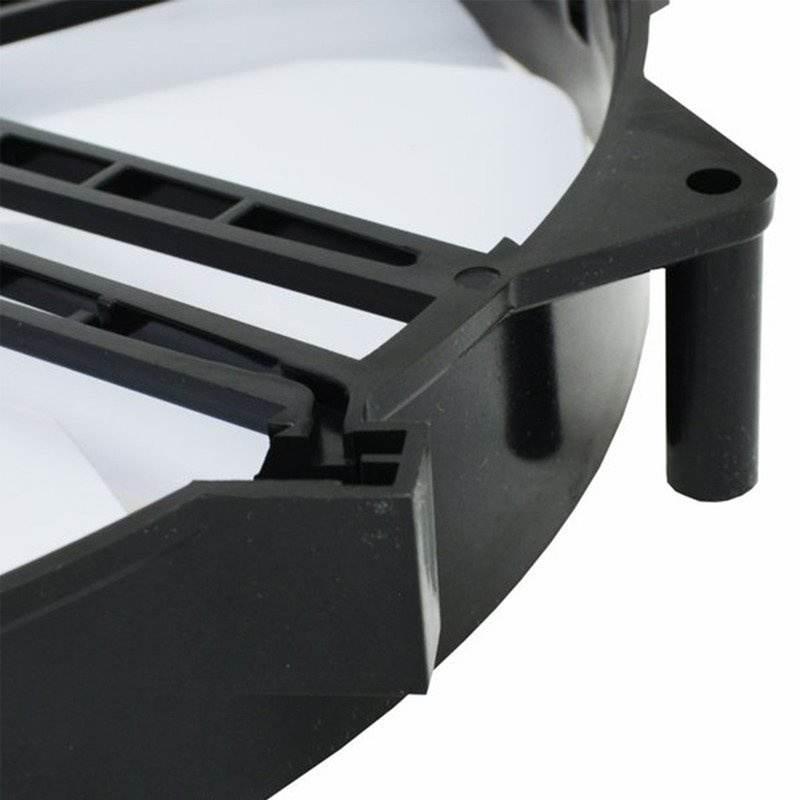

AABCOOLING Super Silent Fan 25 is a high performance 218 x 218 mm fan with up to 13 fan blades designed in a dynamic way for high performance. Solid, not pricey and lightweight 218 x 218 x 30 mm fan with 170 x 170 mm (side) spacing between mounting holes.
The fan operates at a constant speed of 800 ± 10%. The air flow is as high as 232 m 3 / h and the noise generated by the propeller is approx. 14,9 dB, which makes it a very quiet and efficient fan in its class available on the market. The mounting is very simple -, we install the fan with 4 screws in the chosen place.

- Solid construction, 218 x 218 x 30 mm

- State-of-the-art IC

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Excellent work performance 232 m3/h

- Mounting and anti-vibration washers

- Extended lifespan: 100000h




Application:

The AABCOOLING Super Silent Fan 25 is mounted on 4 screws. Because of the custom dimensions, it requires individual adjustment of the PC side panel / casing. Possibility of mounting, for example, in a caravan to improve air circulation or small rooms / equipment requiring extra ventilation - more efficient cooling.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades.
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- Ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span.

Mounting the fan in a casing or power supply:

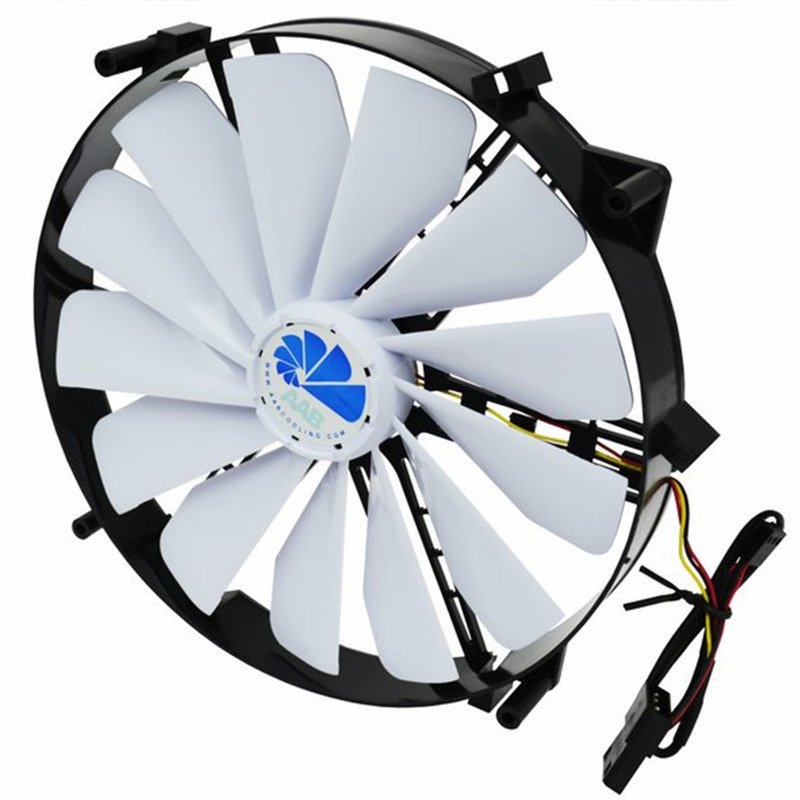

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.

Included:

- 1 x AABCOOLING Super Silent Fan 25
- 4 x mounting screws
- 4 x anti-vibration washers
- Packaging

Symbol
5907734796627
Producer code
5907734796627
Total dimensions
218 x 218 x 30 mm
Weight
275 g
Material
Plastic
Power Supply
4V~12 VDC/ 0,09A~0,27A/ 0,36W~3,2W
Power Connector
3 Pin
Speed
800 rpm+/-10%
Airflow
232 m3/h
Noise
14,9 dB(A)
Bearings
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance
0,29 C/W
Mounting hole spacing
170 x 170 mm
Lifespan
100000 h
